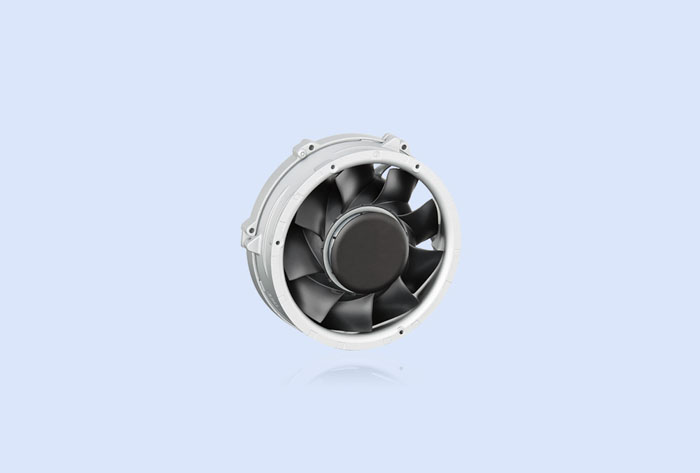

Diagonal fans

The compact diagonal fans from ebm papst can

  • with an air volume of 200 m³/h to 1,100 m³/h,
  • at a counter pressure of 0 Pa to 1,500 Pa,
  • with a size of 119×119 mm to 200 mm,
  • from a sound power level of 60 dB(A),
  • at an operating temperature of -20 °C to 65 °C,
  • with a nominal voltage of 9 VDC – 72 VDC or 100 VAC – 130 VAC
  • and at a frequency of 50/60z

be operated.

Please contact us for further technical information or special requirements!


Product informations

With ebm-papst diagonal fans, the air is discharged diagonally, which means that the air is highly compressed. This enables a high volume flow with high pressure build-up and low operating noise.

Options with an alarm or speedometer signal are also available.

Areas of use are cooling-intensive applications.


100 VAC – 130 VAC, 9 VCD – 72 VDC


50/60 Hz

Air flow rate

200 – 1.100³/h

Power consumption

19 – 360 W

Counter pressure

0 – 1.500 Pa

EC technology

Various control and regulation functions


Aluminium, Die-cast aluminium, Metal, Plastic, Plastic + metal, Sendzimir galvanised sheet steel

Fan impeller

Aluminium, Hot-dip galvanised sheet steel, Metal, Plastic, Sendzimir galvanised sheet steel

Support spider



Black painted, Galvanised, Thick layer passivated

Wall ring

Metal, plastic-coated, Steel plate
