500 m³/h - 60.000 m³/h @ 110 Pa - 350 Pa

The Hyblade axial fan series from ebm papst can

  • with an air flow rate of 500 m³/h to 60,000 m³/h,
  • at a counter pressure of 110 Pa to 350 Pa,
  • in sizes from 200 mm to 1,250 mm,
  • from a sound power level of 61 dB(A),
  • at an operating temperature of -25 °C to 60 °C,
  • with a rated voltage of 200 V - 277 V (single-phase) or 380 V - 480 V (three-phase)
  • and at a frequency of 50/60Hz

be operated.

Please contact us for further technical information or special requirements!

Product description

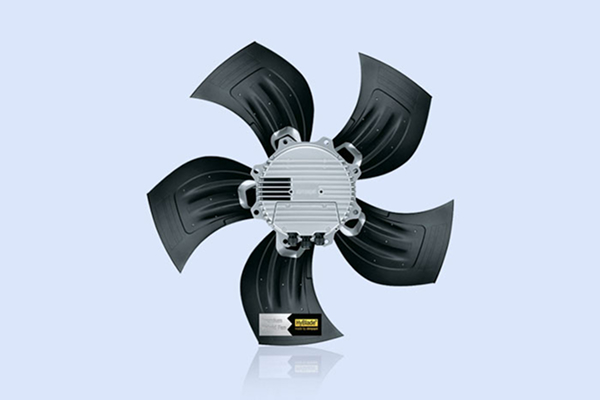

The HyBlade® axial fan series from ebm-papst has hybrid fan blades. This means that the blades consist of an aluminum support structure with a shell made of glass fiber reinforced plastic.

The blades are flow-optimized so that they offer higher efficiency at a lower noise level compared to conventional blades. An optional control system can be used to improve the noise values depending on the area of use and application.

In addition, ebm-papst HyBlade axial fans are characterized by optimized efficiency, improved corrosion protection, low weight and environmentally friendly production with a favorable energy balance.

The axial fans are used in almost all sectors for refrigeration, air conditioning and ventilation technology as well as in mechanical engineering, for heat pumps and much more.

We offer not only standard products, but also customised special versions. These can include, for example, a wider temperature range, customised programming or a special cable and connector design.

Technical data


200-480 V


50/60 Hz

Air volume:


Power input:

54-6.000 W

Counter pressure:

110 - 350 Pa

EC technology:

Various control and regulation functions


Protective grille:

Steel, black plastic-coated (RAL9005)

Wall ring:

Galvanised sheet steel and black plastic-coated (RAL9005)


Insert made of aluminium overmoulded with PP plastic


Thick layer passivated, partially painted black

Electronics housing:

Die-cast aluminium, partly painted black

EC technology:

Various control and regulation functions
