RadiPac
The RadiPac centrifugal fan series from ebm papst can
- with an air volume of 100 m³/h to 100,000 m³/h,
- at a counter pressure of 0 Pa to 3,000 Pa,
- in sizes from 250 mm to 1,000 mm,
- from a sound power level of 30 dB(A),
- at an operating temperature of -25 °C to 40 °C,
- with a rated voltage of 200 V – 277 V (single-phase) or 380 V – 480 V (three-phase)
- and at a frequency of 50/60Hz
be operated.
We have various product variants in stock.
Please contact us for further technical information or special requirements!
Or call us directly: +49 40 538 09 220
(Mon – Thu from 8 a.m. to 5 p.m. and Fri from 8 a.m. to 2 p.m.)
Product description

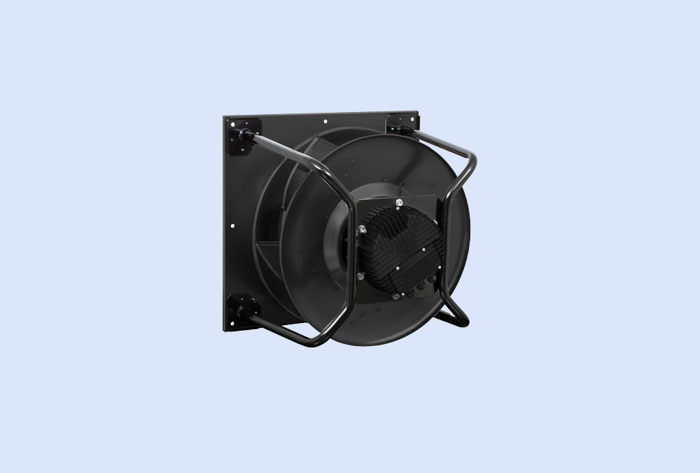

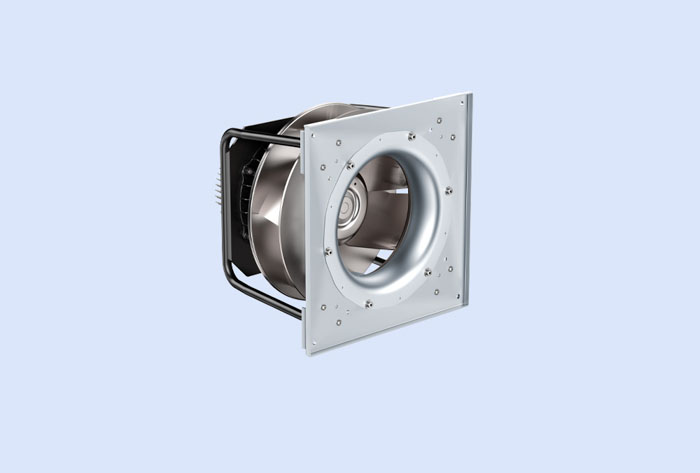

The RadiPac centrifugal fan series from ebm-papst combines the electronic motor unit with the high-performance impeller as well as the support spider, support plate and inlet nozzle or cube design to create a compact and very efficient plug-and-play solution.
RadiPac solutions are particularly suitable for applications where higher pressures (Pa) are required.
The RadiPac centrifugal fans can also be installed as a FanGrid to form a fan wall. This therefore consists of several units with support spider, support plate and inlet nozzle or cube construction. Our specialists in the retrofit team can design customised solutions for you.
Each RadiPac fan unit can be controlled individually in the system or together with others.
Technical data
| Voltage | 200 – 480 V |
|---|---|
| Frequency | 50/60 Hz |
| Air flow rate | 100-100.000m³/h |
| Power consumption | 0 – 30 kW |
| Counter pressure | 0 – 3.000 Pa |
| EC technology | Various control and regulation functions |

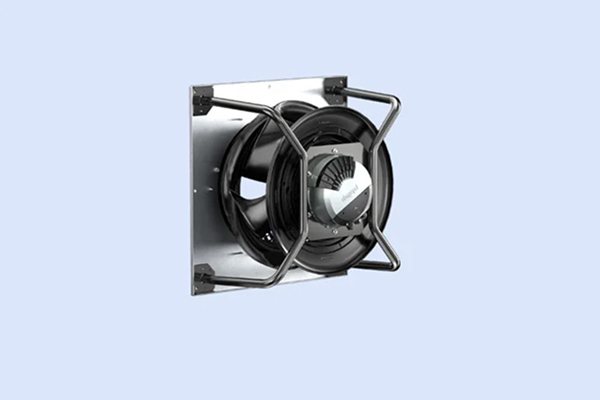

| Support spider | Black painted, Steel |
| Support plate | Galvanised, Steel plate |
| Impeller | Aluminium sheet, PP plastic |
| Rotor | Black painted |
| Electronics enclosure | Die-cast aluminium |
