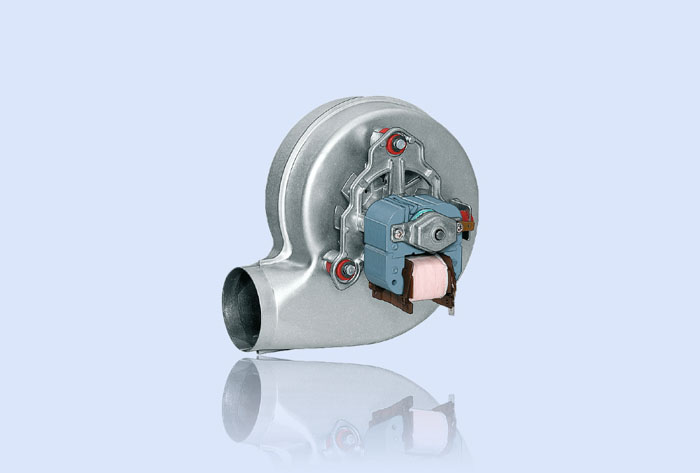

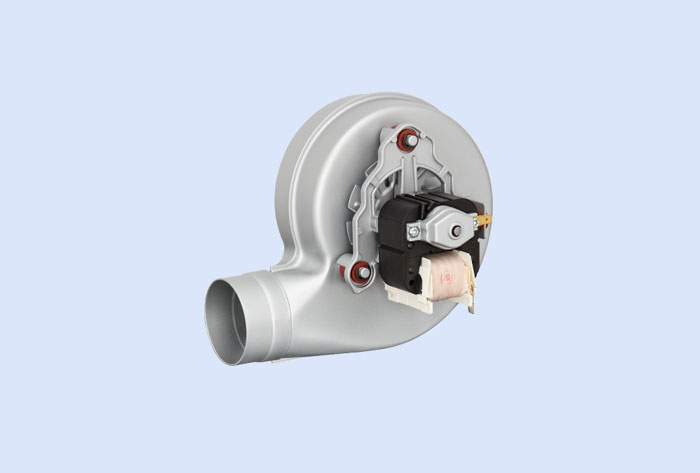

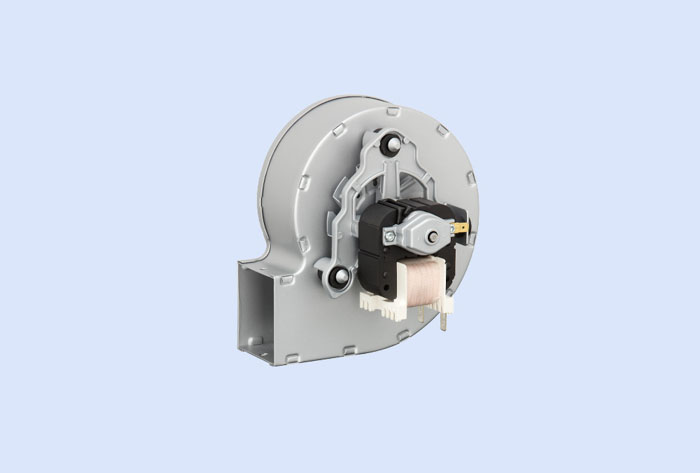

Exhaust blower
The exhaust gas blowers from ebm-papst can
- with an air flow rate of 40 m³/h to 340 m³/h,
- at a back pressure of 0 Pa to 450 Pa,
- with a size of 150 mm to 180 mm,
- from a sound power level of 66 dB(A),
- at an operating temperature of -25 °C to 70 °C,
- with a rated voltage of 200 V – 240 V (single-phase)
- and at a frequency of 50 and 50/60Hz
be operated.
We have various product variants in stock.
Please contact us for further technical information or special requirements!
Description
ebm-papst exhaust gas blowers are centrifugal fans for high-temperature applications in heating technology. The blowers can convey exhaust gases up to 250 °C. The robust exhaust gas blowers operate quietly and are maintenance-free. Up to three speed levels can be realized.
Areas of application are, for example, appliances connected to a chimney in an apartment building.
Additional information
| Voltage |
200 – 240 V |
|---|---|
| Frequency |
50 Hz ,50/60 Hz |
| Air flow rate |
40 – 340 m³/h |
| Power consumption |
16 – 65 W |
| Counter pressure |
0 – 450 Pa |
| EC technology |
Various control and regulation functions |
| Fan impeller |
Rust resistant ,Steel plate |
| Enclosure |
Fire aluminised ,Steel plate |
| Max. exhaust gas temperature: |
Continuous operation 250°C |
Downloads
Exhaust blowers
Ventilatoren und Gebläse für Feststoffheizungen
Size: 19.93 MB
Hits: 172
Date added: 07-05-2025
