AxiCool

Tag: 3.000 m³/h - 25.000 m³/h @ 40 Pa - 300 Pa

The AxiCool axial fan series from ebm-papst can

with an air volume of 3,000 m³/h to 25,000 m³/h,
at a counter pressure of 40 Pa to 300 Pa,
with a size of 300 mm to 800 mm,
from a sound power level of 59 dB(A),
at an operating temperature of -40 °C to 40 °C,
with a rated voltage of 200 V – 277 V (single-phase) or 380 V – 480 V (three-phase)
and at a frequency of 50/60Hz

be operated.

We have various product variants in stock.

Please contact us for further technical information or special requirements!

Call

Contact

Category: Axial fans

Product description

The AxiCool axial fan series was developed for cooling and keeping goods fresh under hygienic conditions. They are also suitable for other applications.

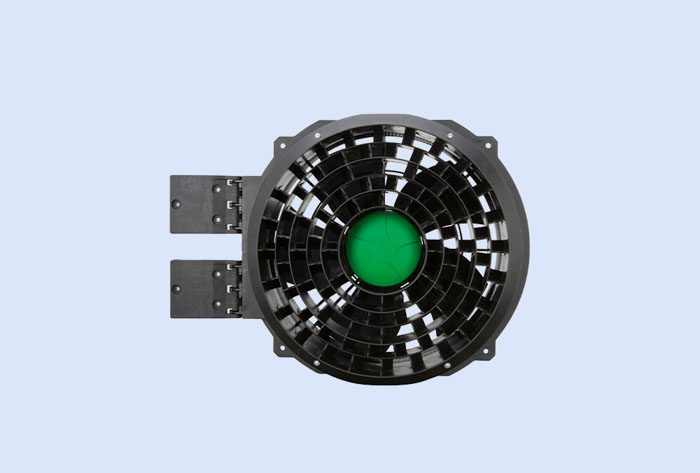

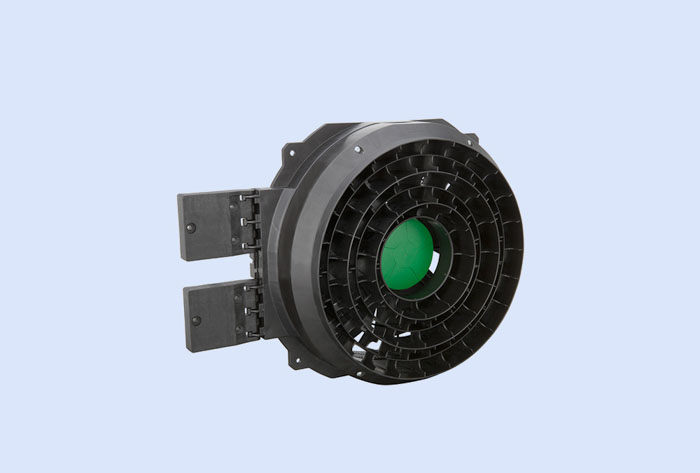

One advantage is the high degree of protection up to IP 54 (splash water protection). The smooth surfaces prevent dirt from sticking. The hinge function also makes it easier to clean heat exchangers in accordance with HACCP regulations. The screws are loosened and the fan is folded away.

Technical data

Voltage	200 V – 277 V (single-phase) or 380 V – 480 V (three-phase)
Frequency	50/60 Hz
Air flow rate	3.000 – 25.000 m³/h
Power consumption	1 – 3.100 W
Application area	Up to 300 Pa
EC technology	Various control and regulation functions
Protective grille	Black plastic-coated (RAL9005) , Steel, phosphatised
Wall ring	PP plastic
Blades	PP plastic
Rotor	Surface passivated
Electronics enclosure	Die-cast aluminium
